Connect MS Hologram AR with EasyPLC

Machines Simulator Hologram AR uses EasyPLC to run and manage the machine logic behind each simulation.

This guide explains how to start a scene using EasyPLC v5 and the Virtual PLC CPU.

Before you start​

Make sure that:

  • EasyPLC v5 is installed
  • Machines Simulator Hologram AR is installed and licensed
  • the Tilt Five system is already configured

Start the simulation with EasyPLC​

  1. Launch EasyPLC v5.
  2. Open the required logic project. For example: MachinesSimulator3_EasyTransferLine.plc.

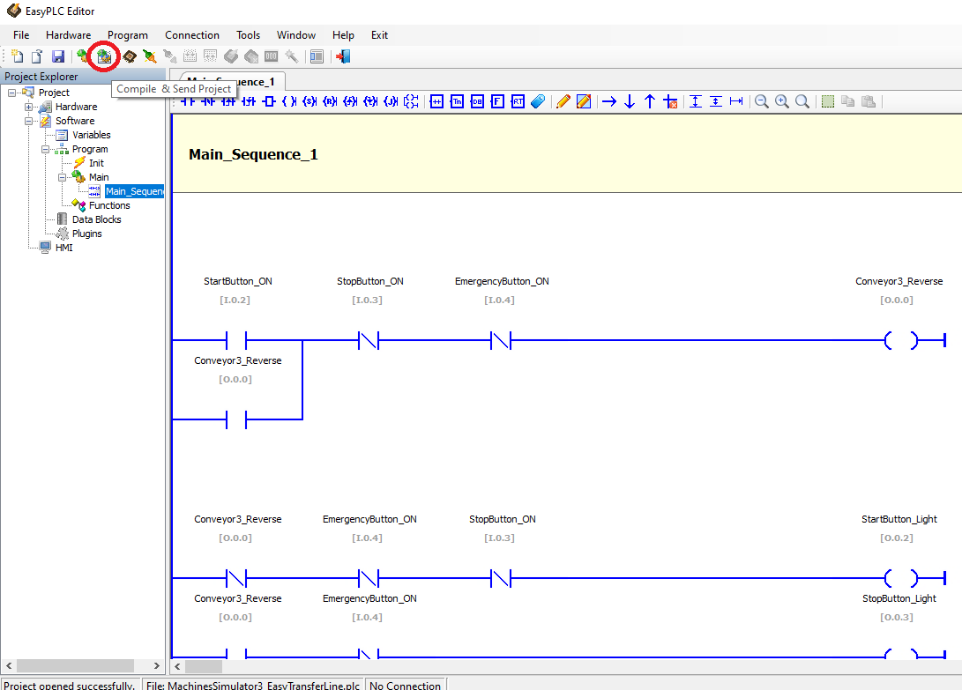

  3. Click Compile & Send Project in the toolbar.
EasyPLC Solution
  1. When the Virtual PLC CPU window asks whether you want to execute it, click Yes.
EasyPLC Solution

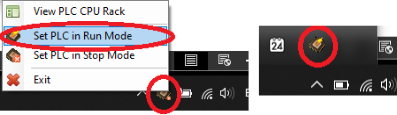

  1. In the Windows system tray, right-click the Virtual PLC CPU icon and select Set PLC in Run Mode.
EasyPLC Solution
  1. Launch Machines Simulator Hologram AR.

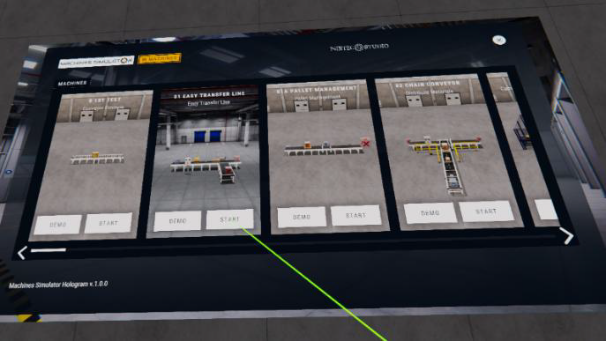

  2. Open the target scene. For example: 01 Easy Transfer Line.
EasyPLC Solution
  1. Wait until the scene detects that the Virtual PLC CPU is running.

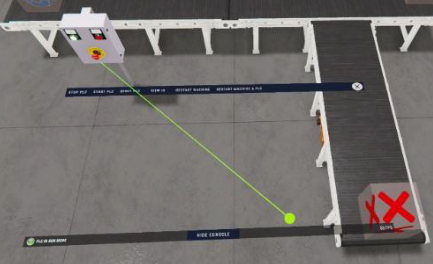

    When the connection is active, the status indicator in the console turns green.
EasyPLC Solution
  1. Press the machine Start button in the scene to begin the simulation.

Once the simulation starts, you can monitor the program execution from the EasyPLC Editor.

Using third-party PLC software​

Machines Simulator Hologram AR can also be used together with third-party environments through EasyPLC, including:

  • Siemens TIA Portal
  • Rockwell
  • CODESYS
  • Schneider
  • Modbus
  • OPC DA / OPC UA

In these cases, EasyPLC acts as the interface layer between the external system and Machines Simulator Hologram AR.
