Cross Reference

The Cross References tool is a diagnostic utility used to locate every instance of a specific variable across all sequences in the active project. This is essential for tracing logic flow and identifying where specific tags are being modified or read.

Driver Configurator

Search Procedure​

To perform a cross-reference check:

  1. Open the Cross Reference window from the Tools menu.
  2. Select the desired variable name from the Select Item dropdown list.
  3. Press the Enter key or click the Find button.

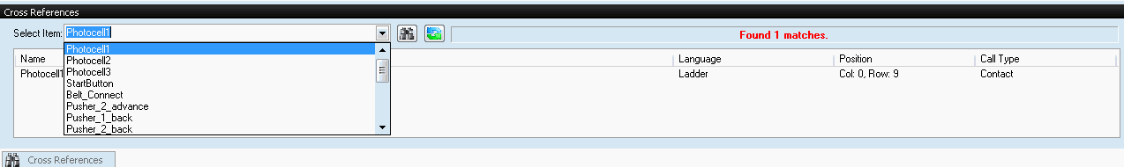

Search Results​

When the search is complete, the window populates with a detailed list of every occurrence, providing the following data for each entry:

  • Sequence Name: The specific module containing the variable.
  • Language: The programming language used in that sequence.
  • Position: The exact location within the logic.
