Environment

1. DayCycle​

Use this component to create in your environment a simulation for day and night cycle.

2. Room​

This component allows creating a room, where all textures (roof, floor, right, left, front and backsides) can be customized.

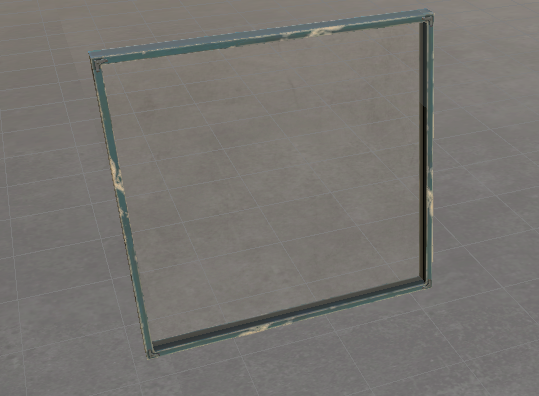

3. Window​

A configurable size window.

Window

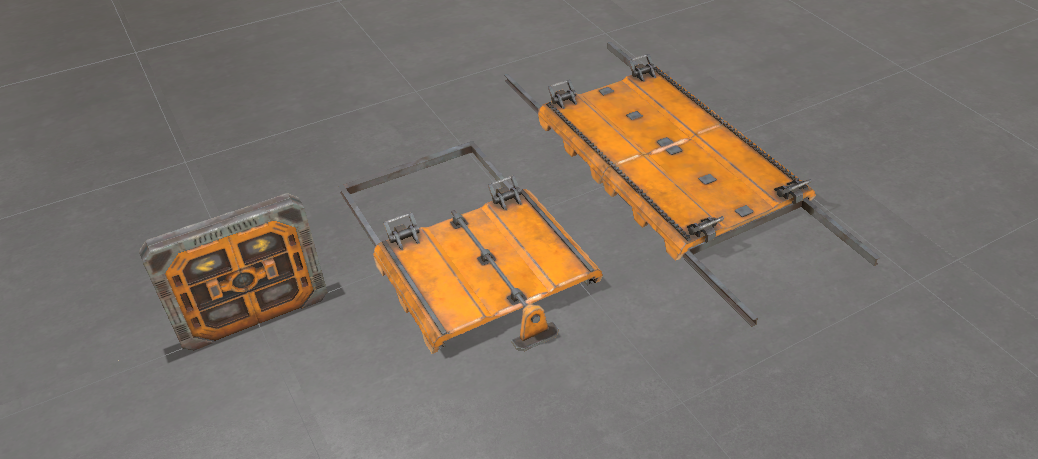

4. Doors​

Different types of vertical and horizontal doors.

Doors

5. Gate​

A blind system that can be managed by one PLC output (to open) and one PLC input (to inform the blind is open) or can be managed automatically when a WorkPart is detected.

Gate

6. Machine Door​

A door for machines, uses one PLC dig. input to inform about their current state (opened/close), and one PLC dig. Output to allow the manual opening or not.

Machine Door

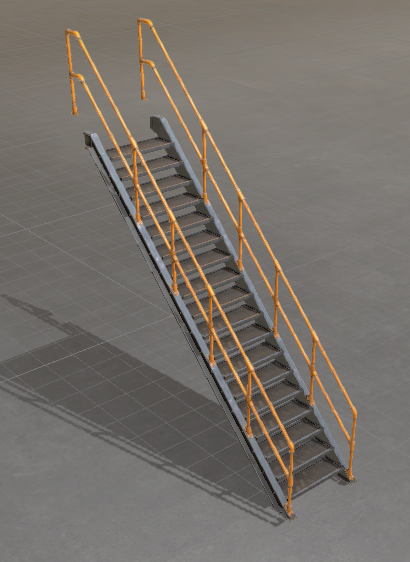

7. Stairs​

A configurable stair tool.

Stairs

8. Modular Stairs​

Allows to create an industrial platform & stairs system with all the available items inside this component.

Modular Stairs

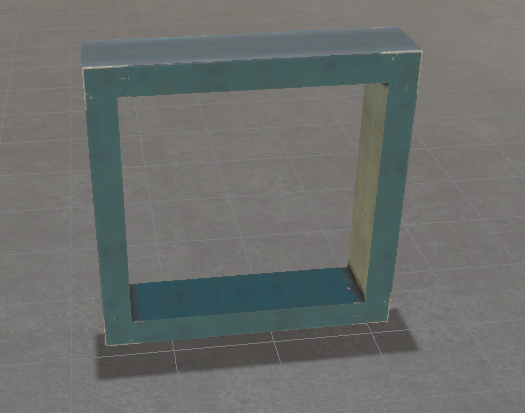

9. Frame​

A configurable width & height frame.

Frame

10. Rain​

Allows to simulate rain (only for Outdoor Editor).

11. Wind​

Allows to simulate a wind effect with particles (only for Outdoor Editor).

12. Mountains​

Creates a mountain landscape (only for Outdoor Editor).

13. Factory Builder​

This component allows to create customized factories. Could be used in the Factory 1 Editor or in the Outdoor editor. If is used in the Factory 1 Editor, so that it does not have conflicts with the factory default, it can be hidden, for this use the following Script function in the Machine Script Code:

public void Init()
{
      //Hide default Factory model
      MS.HideFactory();
}

Factory Builder 1

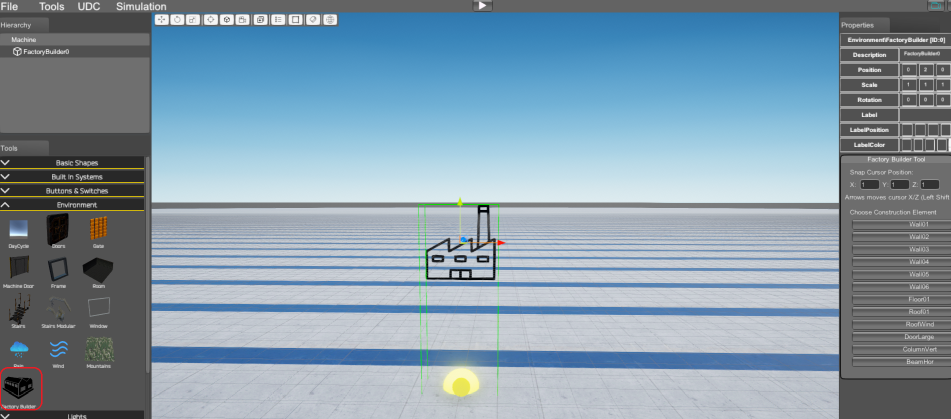

To create a new customized factory, add one Factory Builder component to the simulation:

Factory Builder 1

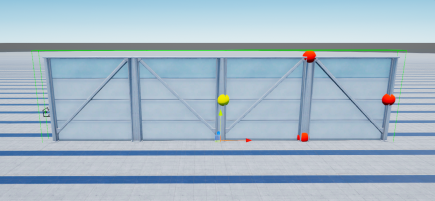

Move the yellow cursor with arrows keys to place it in the build position. Press on the desired component to create walls, floor, roof, doors or columns:

Factory Builder 2

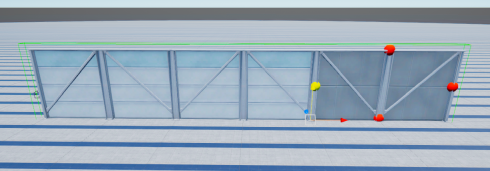

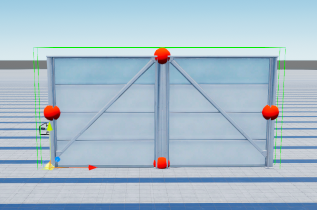

Now, click on the red points located at up, down, left or right to create the same component stuck to that position:

Factory Builder 3

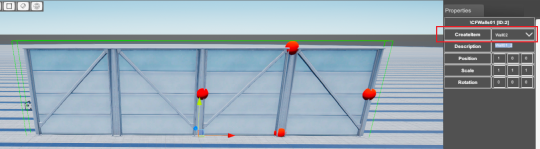

If you want to create other factory component, before click on the red point, select from the module CreateItem property the component to create:

Create Item Property

Factory Builder Result

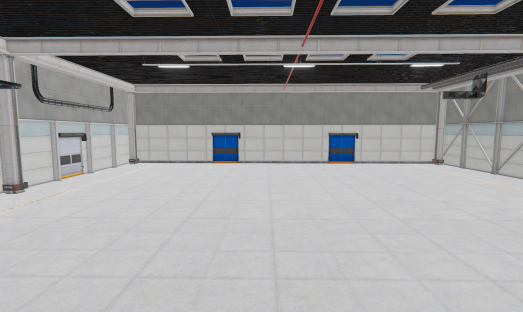

You can create as many factory buildings as you need for your simulation, with custom length, height and width measurements.

Custom Factories
